JBE-P2L1
has EN 54 Certificate, a 7” LCD display with 800 X 480 resolution, 6 auxiliary function keys, 4 control keys, keypad with 12 numeric keys, 11 LED indicators and 30 zones LED making it a highly intuitive fire alarm user interface allowing the user to totally setup the system without the need of any external tool

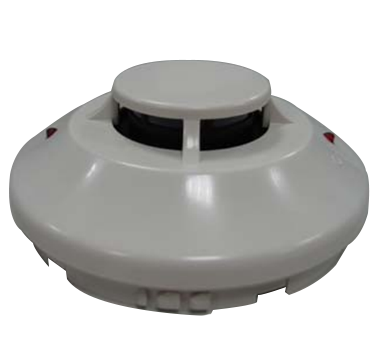

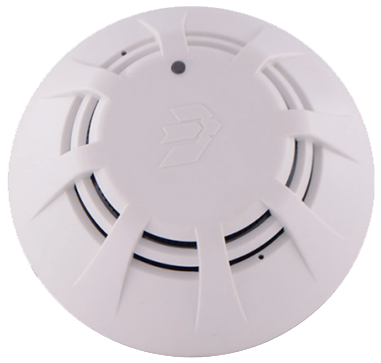

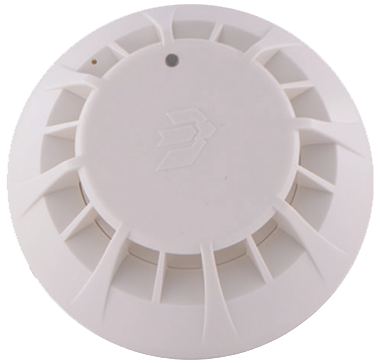

JBE-2111
is an addressable optical smoke detector designed to operate on a loop of intelligent fire detection and alarm devices with the JBE loop protocol. This detector responds to various types of smoke from the early stages and incorporates a pollution compensation feature which extends its service life, while preventing false alarms resulting from dust accumulation that has European standards EN 54-7.

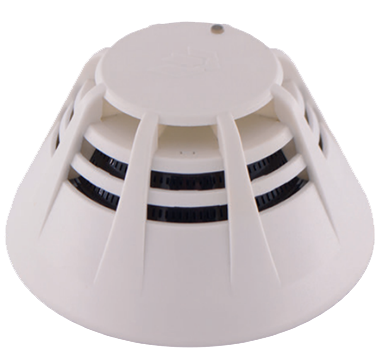

JBE-2106
is an addressable heat detector designed to operate on a loop of intelligent fire detection and alarm devices with the JBE loop protocol. This heat detector sends fire alarm signals to the fire panel when the air temperature (or its rate of rise) reaches the alarm thresholds defined in the European standards EN 54-5. The detector features three (3) sensitivity profiles: A2R, A2 and A2S
JBE-2115
is an addressable combined optical smoke and heat detector designed that has EN 54-7 and EN 54-5 certificate to operate on a loop of intelligent fire detection and alarm devices with the JBE loop protocol. It sends fire alarm signals to the fire panel when the preselected levels of heat or smoke are detected. The detector features six (6) profiles, which combine different levels of heat and smoke.

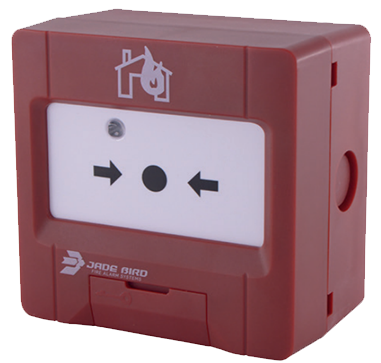

JBE-2100
JBE-2100 is an addressable manual call point (MCP) designed to operate on a loop of intelligent fire detection and alarm devices with the JBE loop protocol and has EN 54-11 certificate. After activation, the MCP will remain in alarm until it is reset with the supplied reset key. There is no glass break element in this device, so the reset operation is conveniently done without the need to replace any element.
JBE-2235
JBE-2235 is an addressable EN 54-3 sounder designed to operate in a loop of intelligent fire detection and alarm devices with the JBE loop protocol. The sounder device receives activation commands from the JBE fire panel and generates its sound output accordingly
JBE-2135
JBE-2135 is an addressable EN 54-3 sounder designed to operate in a loop of intelligent fire detection and alarm devices with the JBE loop protocol. The sounder needs to be connected to both the JBE communication bus and to the 24 V power bus.

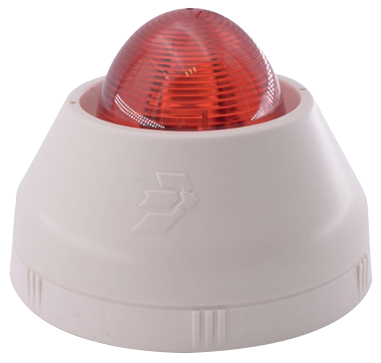

JBE-2145
JBE-2145 is an addressable EN 54-3 sounder with visual indicator (VID) designed to operate in a loop of intelligent fire detection and alarm devices with the JBE loop protocol. The visual indicator activates at the same time as the sounder. This visual indication is ancillary and not intended to meet the requirements of EN 54-23 beacons.

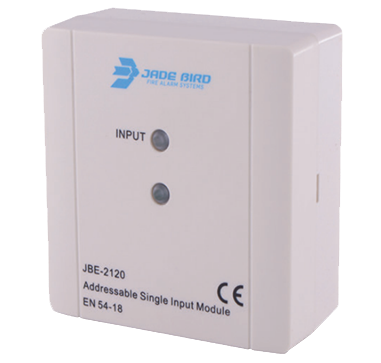

JBE-2120
JBE-2120 is an addressable input module designed to operate on a loop of intelligent fire detection and alarm devices with the JBE loop protocol and has EN 54-18 certificate. This input is electrically isolated from the loop and can be used for monitoring the state of one normally open dry-contact switch.

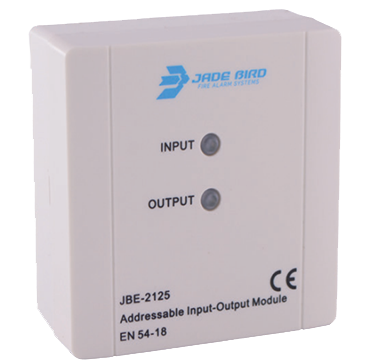

JBE-2125
JBE-2125 is an addressable output module with one feedback input designed to operate on a loop of intelligent fire detection and alarm devices with the JBE loop protocol. Each module provides one output to the fire detection system and one feedback input that been certified with EN 54-18.

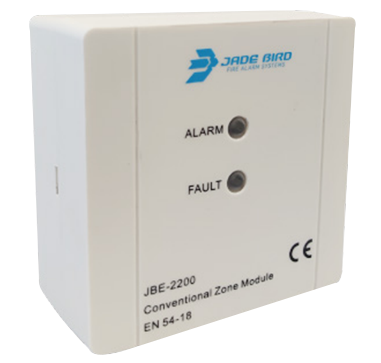

JBE-2200
JBE-2200 is an addressable conventional zone module designed to operate on a loop of intelligent fire detection and alarm devices with the JBE loop protocol and has EN 54-18 certificate. The module is loop-powered or loop-powered plus 24 V DC power bus.

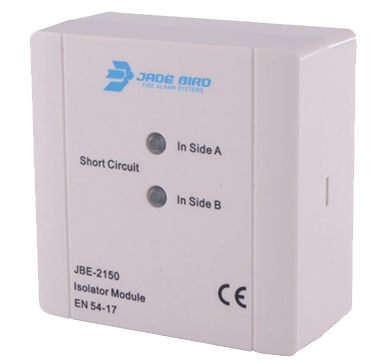

JBE-2150
JBE-2150 is an isolator module designed to operate on a loop of intelligent fire detection and alarm devices with the JBE loop protocol and has EN 54-17 certificate. The isolator modules don’t use address from the loop and it’s not required to program an address.
JBE-2112
JBE-2112 is a conventional optical smoke detector designed to operate on a zone line of intelligent fire detection and alarm devices. This smoke detector sends fire alarm signals to the fire panel when the detected smoke value reaches the preset alarm thresholds defined in the European norm EN 54-7.
JBE-2107
JBE-2107 is a conventional heat detector designed to operate on a zone line of conventional intelligent fire detection and alarm devices. This heat detector sends fire alarm signals to the fire panel when the air temperature (or its rate of rise) reaches the alarm thresholds defined in the European norm EN 54-5 that have three (3) sensitivity profiles: A2R, A2 and A2S.
JBE-2101
JBE-2101 is a conventional manual call point (MCP) designed to be compatible with a wide range of conventional fire panels and input modules and has EN 54-11 certificate. This MCP sets an installer-selectable resistive load to the fire loop when its resettable element is pressed.

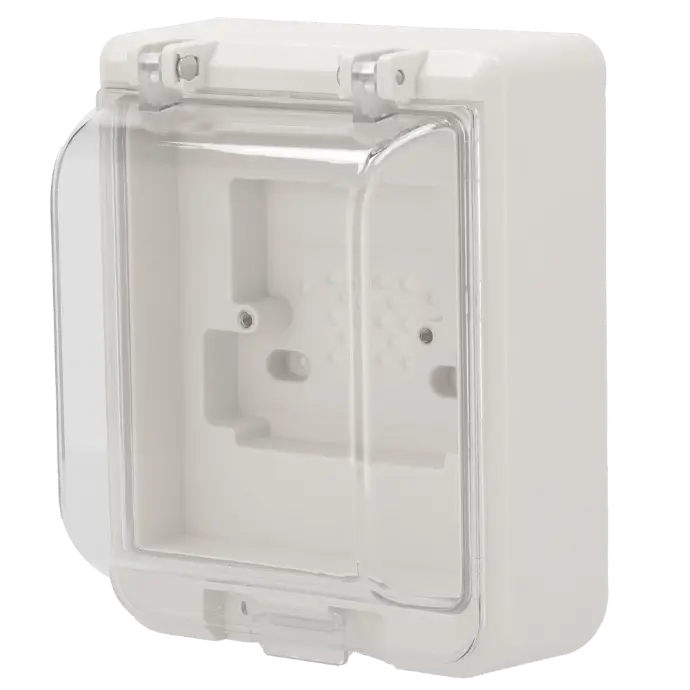

BOX-2102
BOX-2102 is casing combined with internal sealing gaskets to achieve water and dust resistance. It has threaded mounting holes for xing modules or MCPs without compromising the dust and moisture protection. The soft rubber at the base of the protective case can be perforated for cable insertion while maintaining its water and dust resistance.

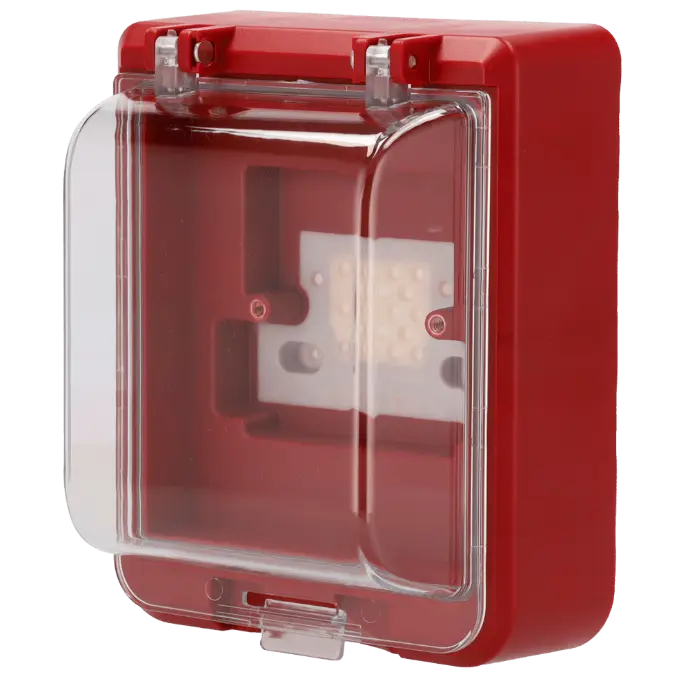

BOX-2101
BOX-2101 is casing combined with internal sealing gaskets to achieve water and dust resistance. It has threaded mounting holes for xing modules or MCPs without compromising the dust and moisture protection. The soft rubber at the base of the protective case can be perforated for cable insertion while maintaining its water and dust resistance.
JBE-P2L1-EXLP
The optional second loop card (JBE-P2L1-EXLP) can be added to the main loop panel card to expand it into a two -loop panel. The second loop has the same capabilities as the first loop in the number of devices and power limits.

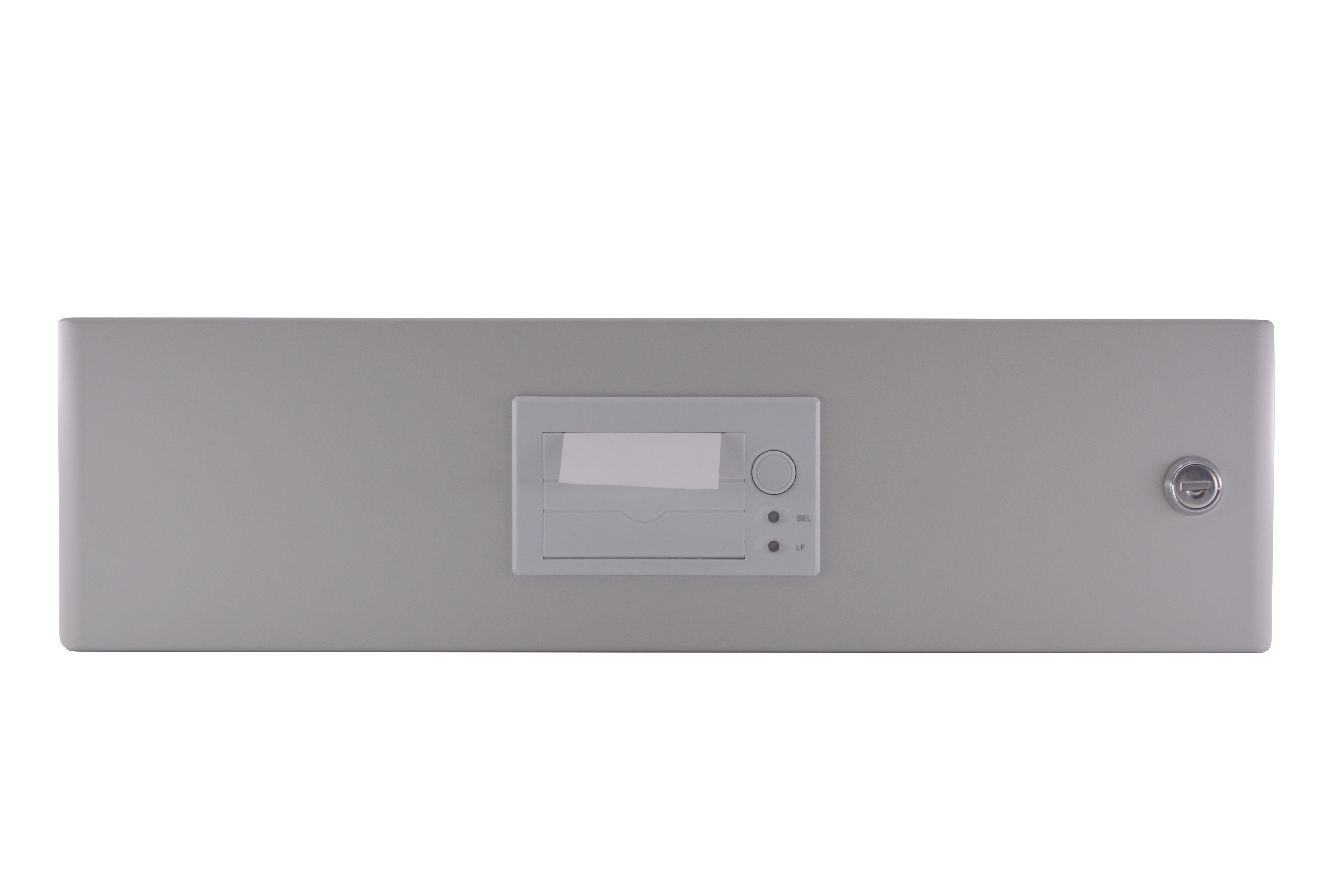

JBE-PRT
The optional printer consists of an external printer box with a thermal printer. It can be installed/attached under the cabinet of the panel. When the printer is installed, users with access level 3 can set up the printer from the adjust menu.
JBE-P2L2-NET
The JBE-P2L2-NET card allow to connect the JBE-P2L1 fire panel to communicate on a dedicated network.
Watch our video explaining how to install and configure the JBE-P2L2-NET network card.

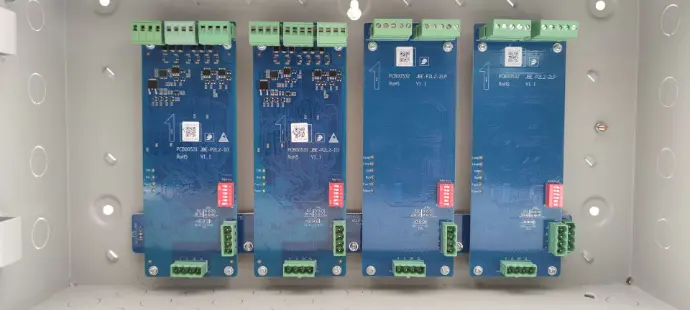

JBE-EXP
The external expansion box provides a cabinet equipped with the necessary cables to support up to three JBE-P2L2-2LP or four JBE-P2L2-IO cards. This allows the panel to be expanded
JBE-P2L2-2LP
The JBE-P2L2-2LP expansion card allows for the addition of two additional loops to the JBE-P2L1 control panel configuration. Each expansion card provides an additional two loops to the panel, with a maximum of eight loops with up to three cards per panel. The main panel card provides two loops to the system.
